EVERY STUDIO NEEDS MP8d
8-channel Microphone Preamplifier with A/D conversion
MP8d is an eight-channel class-A microphone preamplifier, which boasts Antelope Audio’s integrated world-class A/D conversion. Antelope’s converters are widely regarded for their naturally warm, yet sonically accurate sound signature.
This classically rich, yet modernly precise sound is accomplished thanks to Antelope’s Acoustically Focused Clocking jitter management algorithm and Oven-Controlled crystal oscillator, along with advanced analog and digital circuit board design, powered by a proprietary power supply.
“…it’s a great sounding preamp and it’s so flexible with this app to control all the settings.”
Mitch Gallagher is one of the leading music/pro audio/audio recording authorities in the world. He teaches audio recording and music business at Purdue University/Indiana University, and has appeared at festivals, conventions and conferences around the world.
MP8D FEATURES
8 CLASS-A MIC PRES
8 Hi-Z, Line and Mic compatible preamps with individual phantom power
64-BIT ACOUSTICALLY FOCUSED CLOCKING
A/D enhanced by Antelope’s world-renowned jitter management algorithm
DIGITAL CONNECTIVITY
MP8d features all digital I/O you need – MADI, ADAT, AES/EBU, S/PDIF, TOSLINK
POWERFUL DSP
Massive parallel DSP for fast routing, low-latency mixing and real-time FX
8 CHANNELS
DB25 connector for 8-channel direct microphone output
SUPREME CLOCKING
Oven-Controlled Oscillator, 2 Word Clock outs, 1 Word Clock in and 1 Atomic Clock in
MP 8d’s features
DESCRIPTION

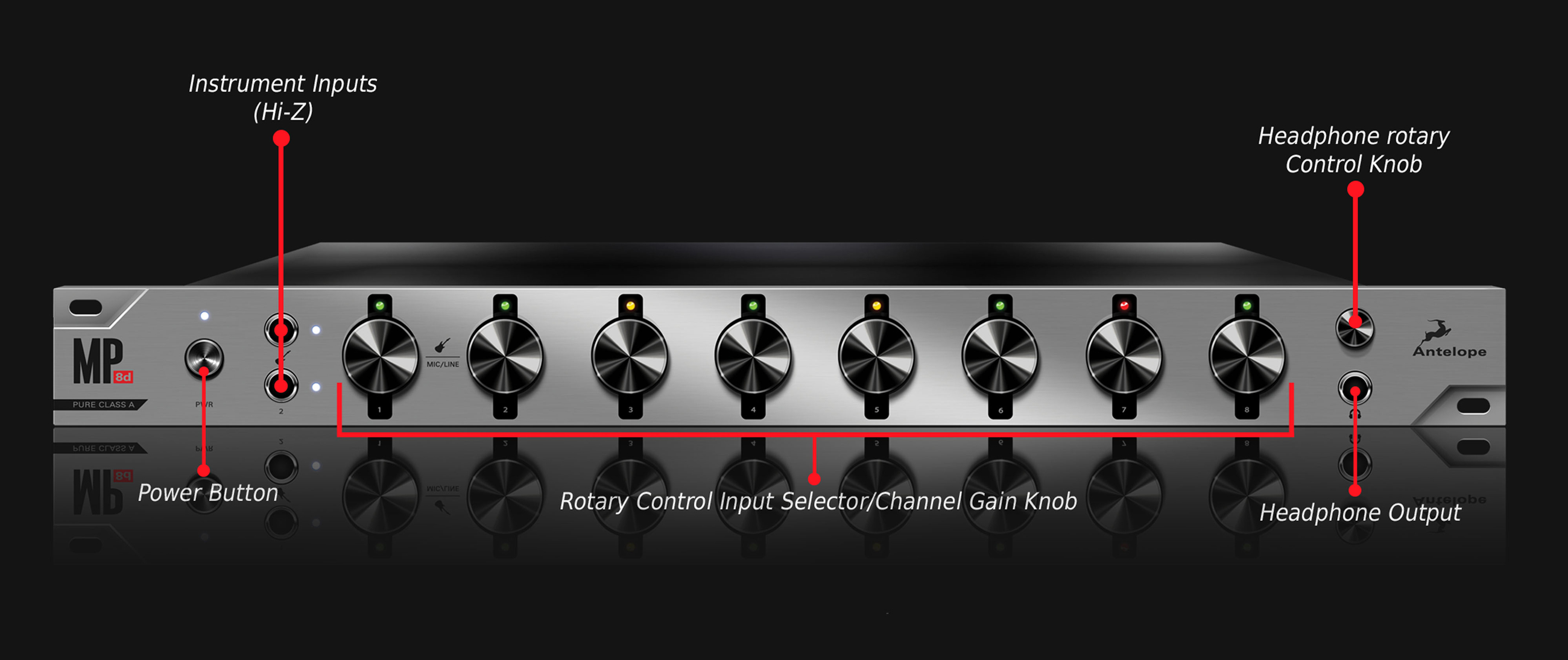

ANALOG VERSATILITY
Generous analog connectivity in a device taking up just 1U space
The MP8d mic pres are combo XLR/TRS connectors, which accept both mic and line level signals. Hi-Z inputs are associated with channels 1 and 2, and are accessible via dedicated TRS connectors on the front panel. Inserts for connecting your favorite effects outboard gear are available on the rear panel.

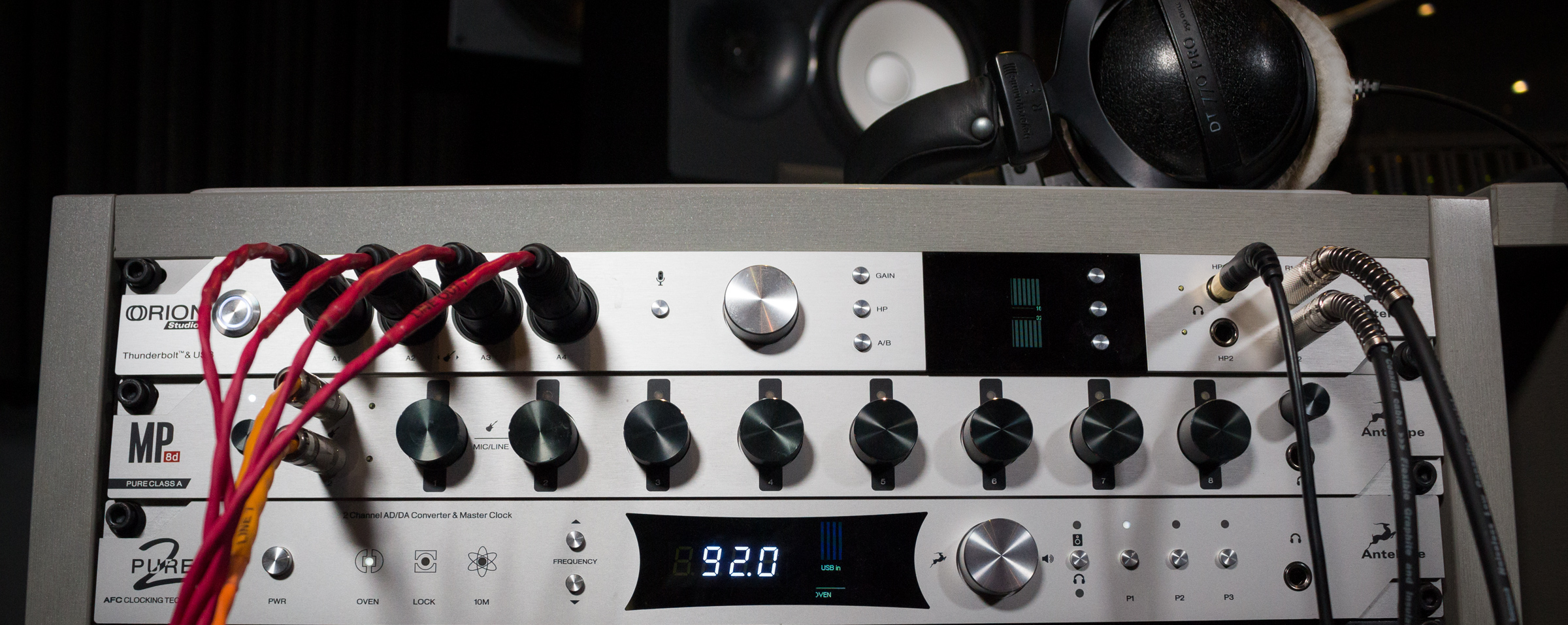

A high-end headphone amp is accessible from the front panel to provide the convenience of integrated monitoring. The analog connectivity is accomplished with a D-Sub 25 connector directly outputting the mic signals at line level, making MP8d a perfect companion device for Antelope’s Orion32 and Zen Studio audio interfaces.


DIGITAL EFFICIENCY
MP8d features all digital I/O options you’ll ever need
A plethora of digital connectors offer a wide variety of options, providing extreme flexibility and enhanced productivity.
MP8d provides S/PDIF, AES/EBU, TOSLINK, ADAT and MADI connections expand the product compatibility and allow for both easy connection to other outboard gear or DAW, as well as cascading two or more MP8d units, expanding the channel count.


LET’S RECAP
MP8d is a mic preamp and A/D converter
All I/O’s you’d ever need: MADI, ADAT, AES/EBU, S/PDIF, TOSLINK; 8 8 Hi-Z, Line and Mic compatible preamps; DB25 connector for 8-channel direct microphone output; 2 Word Clock outs, 1 Word Clock in and 1 Atomic Clock in.
Plus Antelope’s world-renowned jitter management algorithm in this beautiful 1U rack unit.
-
Introducing the MP8d
-
MP8d
CONNECTIVITY

SPECIFICATIONS
-
Analog Inputs
8 x Mic / Line on XLR combos on the rear panel
2 x Hi-Z (instrument) inputs on TRS on the front panel (Mic inputs 1,2)
-
Analog Inserts
2 x Inserts on TRS (inputs 1,2)
-
Analog Outputs
8 x Lines on DB25 (8 channels)
1 x Stereo Headphone outs on TRS (2 channels)
-
Digital Inputs
1 x MADI (up to 64CH)
-
Digital Outputs
1 x MADI (up to 64CH)
2 x ADAT (up to 16CH)
1 x S/PDIF
1 x TOSLINK
1 x AES/EBU on DB9 (breaks down to 4 x XLR connectors, cable not included)
-
Clocking System
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
-
USB I/O
2.0 Hi-Speed, Type B, only for control
-
Atomic Clock
1 x 10M Input @ 75 Ohms 1Vpp on BNC
-
Word Clock
1 x Input @ 75 Ohms 3Vpp on BNC 32-192 kHz
2 x Output @ 75 Ohms 3Vpp on BNC 32-192 kHz
-
A/D Converter
Dynamic Range: 120 dB
THD+N: -110 dB
-
Clocking Stability
<+/-0.02ppm, oven controlled at 64.5ºC/148.1ºF
-
Clock Aging
< 1ppm per year
-
Clock Calibration
<+/-0.001ppm
-
Atomic Clock
10 MHz
-
Sample Rates
32, 44.1, 48, 88.2, 96, 176.4, 192 kHz
-
Operating Temperature
0-50°C/32-122°F
-
Weight
3.3 kg/7.28 lb approx.
-
Dimensions (Approx)
Width: 483mm / 19’’
Height: 44mm / 1.75’’
Depth: 230mm / 9.1’’
-
Power Supply
AC Universal input
~95-245 V, 20 Watts Max
-
Power Consumption
20 Watts Max
System requirements
Windows
OS: Windows 7/8/8.1/10
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port
Required USB bandwidth (for firmware update): 80%-90%
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Memory (RAM): 4GB Minimum (8GB or more Recommended)
MAC
OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)
