RME AUDIO Fireface UCX – jedna od najtrazenjih zvucnih kartica radi svoje visoke kvalitete i stabilnih drajvera.
Prikljucuje se preko USB2 ili Firewire 400 konektora i kompatibilna je sa vecinom opreativnih sistema.
nazovite za najbolju cijenu !

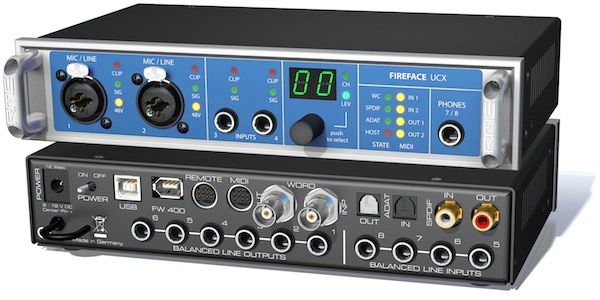

The Fireface UCX is a highly integrated pro audio solution in an ultra-compact format for studio and live recordings. It continues RME’s long tradition of designing compact high-end interfaces, packing into a half-rack size unit what usually would be spread out over two or three 19 inch panels.
In doing this the Fireface UCX marks a new packing record: 300 electronic components more than inside the already well-stocked Fireface UC! In a tremendous effort RME packed once again all the latest technologies, introduced with the award winning flagship UFX, plus a bunch of newly developed ones, into a half 19 inch housing with full mobile usability.
The result is an awesome combination of RME’s most successful products: Fireface UFX, Firefaces UC/400 and Babyface. The Fireface UCX is not just a smaller version of the smash hit UFX, with the HFX-core, the preamps and the complete effects engine. The UCX continues the tradition of RME’s tremendously successful compact interfaces, and combines it with the Babyface’s usability through the optional RME remotes. With the Fireface UCX RME reinvented an already perfect product, by improving existing features and characteristics plus adding sophisticated new ones:
Low Latency mastering grade converters with outstanding specifications. Two mic preamps with the premium technology from RME’s high-end recording bestsellers Micstasy and UFX, including the AutoSet overload protection.
A newly developed Hammerfall audio core, supporting USB and FireWire with the maximum performance and ultra-low latency operation, combined with the legendary RME driver stability and maintenance, on both bus protocols.
TotalMix FX with the complete Fireface UFX DSP engine, including all effects up to 192 kHz. Monitoring Controller: combining the impressive flexibility of the TotalMix FX monitoring tool set and the optional RME Remote Control.
RME’s unique DIGICheck metering and analysis toolbox for Windows PC and Mac. Plus support for RME’s Advanced Remote Control, active jitter suppression technology, professional reference level support, advanced stand-alone functionality, full 192 kHz operation, and last but not least two high speed MIDI I/Os.
On top of it: The Fireface UCX is the first professional audio interface with Class Compliant mode to work with Apple’s iPad, for perfect stereo up to 18 channel recording and playback, and the addition of truly professional I/Os.
So the UCX is a half rack unit, which is actually more powerful, than most 19 inch units. All in all the Fireface UCX is the new compact-sized dream interface, created with care for every detail, and a new premium solution for any desktop and live usage, without compromises in sound, stability and ultra-low latency operation.
The UCX provides 36 channels of audio – 18 I/Os. All channels can be used at the same time. Up to 8 analog and 10 digital channels can be recorded onto 18 separate tracks. All outputs can be used for ASIO Direct Monitoring purposes.
Drivers
– Windows 7 / Vista / XP SP2 (32 & 64 bit)
– Apple Mac OS X 10.5 Intel or up (Core Audio)
Windows and Mac OS X drivers are completely identical in terms of features and functionality. *Some features in DIGICheck are not available in the Mac version.
Technical Specifications
AD, Line In 5-8, rear
Signal to Noise ratio (SNR): 111 dB RMS unweighted, 113 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 6 Hz – 20.6 kHz
Frequency response @ 96 kHz, -0.5 dB: 6 Hz – 45.3 kHz
Frequency response @ 192 kHz, -1 dB: -1 dB: 5 Hz – 90 kHz
THD: < -105 dB, < 0.0005 %
THD+N: < -98 dB, < 0.0012%
Maximum input level: +19 dBu
Channel separation: > 110 dB
Input: 6.3 mm TRS jack, electronically balanced
Input sensitivity switchable to Lo Gain, +4 dBu, -10 dBV
Input level for 0 dBFS @ Lo Gain: +19 dBu
Input level for 0 dBFS @ +4 dBu: +13 dBu
Input level for 0 dBFS @ -10 dBV: +2 dBV
Line In 3-4, front
As AD, but:
Additional Gain stage: 0 up to +12 dB
Maximum input level, Lo Gain, Gain 0 dB:
Line +19 dBu, Inst +13 dBu
Maximum input level, -10 dBV, Gain 12 dB, Line:
-7,5 dBu, Inst: -13,5 dBu
Input impedance Inst: 470 kOhm
Input Gain Inst: +6 dB
Input mode: Line balanced (TRS), Inst unbalanced (TS)
CLIP LED: 0 dBFS
SIG LED: -60 dBFS
Microphone/Line 1-2, front
as AD Line In 5-8, but:
Input: Neutrik XLR/TRS Combo jack, electronically balanced
Input impedance: XLR 2 kOhm, TRS 8 kOhm balanced
Signal to Noise ratio (SNR): 112 dB RMS unweighted, 115 dBA
Low Roll Off -0.5 dB: 18 Hz, -1 dB: 12 Hz
Gain range: 0 dB, +10 up to +65 dB
Maximum input level XLR, Gain 0 dB: +10 dBu
Maximum input level XLR, Gain 65 dB: -55 dBu
Maximum input level TRS, Gain +0 dB: +21 dBu
Maximum input level TRS, Gain +65 dB: -44 dBu
CLIP LED: 0 dBFS
SIG LED: -60 dBFS
DA, Line Out 1-6, rear
Dynamic range (DR): 111 dB, 113 dBA @ 44.1 kHz (unmuted)
Frequency response @ 44.1 kHz, -0.1 dB: 8 Hz – 20.4 kHz
Frequency response @ 96 kHz, -0.5 dB: 6 Hz – 45 kHz
Frequency response @ 192 kHz, -1 dB: 6 Hz – 90 kHz
THD: -100 dB, < 0.001 %
THD+N: -96 dB, < 0.0015 %
Channel separation: > 110 dB
Maximum output level: +19 dBu
Output: 6.3 mm TRS jack, servo-balanced
Output impedance: 75 Ohm
Output level switchable: Hi Gain, +4 dBu, -10 dBV
Output level at 0 dBFS @ Hi Gain: +19 dBu
Output level at 0 dBFS @ +4 dBu: +13 dBu
Output level at 0 dBFS @ -10 dBV: +2 dBV
DA – Phones, 7/8, front
As DA, but:
Output: 6.3 mm TRS jack, unbalanced
Output impedance: 30 Ohm
Word Clock
BNC, switch for internal termination 75 Ohm
System Requirements
USB: Computer with at least Pentium Core 2 Duo CPU (see the list of Tested Systems with USB chipsets).
FireWire: Computer with OHCI compatible FireWire Port 400 (1394a) or FireWire 800 port (via adapter cable).
Firface UCX have DC coupled headphones out !
