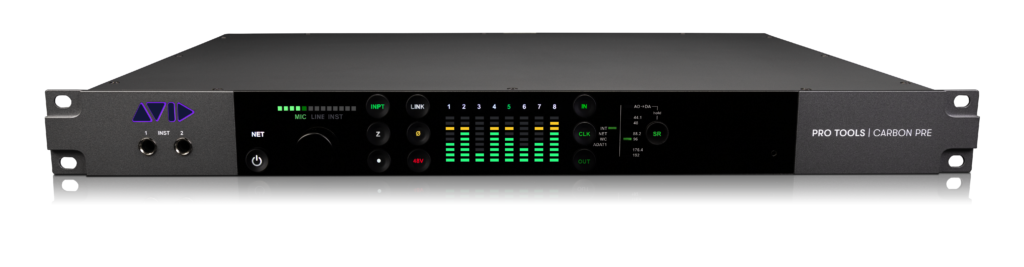

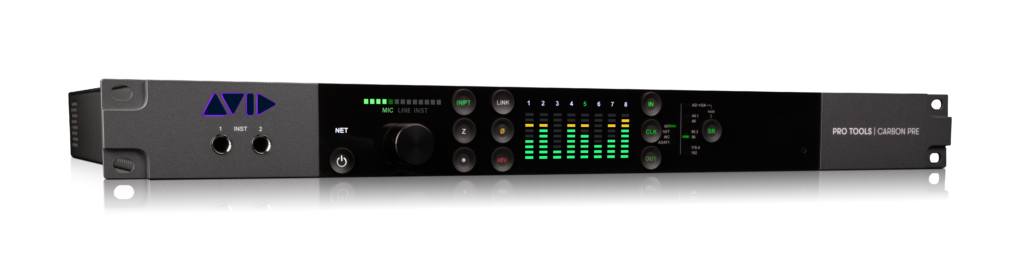

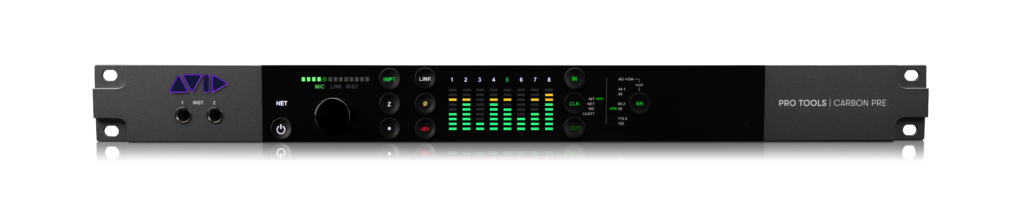

Add I/O with the Pro Tools | Carbon Pre 8-channel preamp
Expand your Pro Tools | Carbon-powered studio up to 24 channels of mic/line inputs. Sonically exceptional, Pro Tools | Carbon Pre is an 8-channel preamp that provides the same transparent preamp design and stacked ADCs as Carbon, providing 32-bit conversion to capture every sonic detail. With a Carbon Expanded system, you can tap into the Pro Tools Hybrid Engine for low-latency input processing—with remote preamp control through Pro Tools. Or use Carbon Pre to expand or replace preamps in a Pro Tools | HD system.
Expand your studio

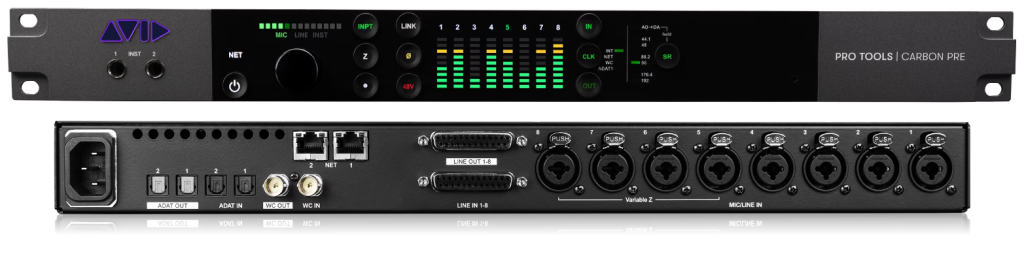

Get all the inputs you need for large tracking sessions and multi-mic live recordings. Each Pro Tools | Carbon Pre provides eight mic/line preamps and eight line outputs, enabling you to expand your Pro Tools | Carbon-based studio up to 24 mic/line inputs and 24 line outputs total. Two Variable Z instrument inputs, 8 x 8 line I/O, ADAT I/O, and Word Clock I/O provide even more connection versatility (see all specs).
Sound exceptional
Get impeccable sound quality across your entire system, from capture to output. With superior audio conversion, stacked ADCs, double resolution clocking, and our most transparent preamp design ever—the same preamps as in Pro Tools | Carbon—you can capture every sonic nuance of a performance with the greatest depth, dimension, and clarity. Even optimize or color the tone of any mic or instrument input with Variable Z impedance switching.
Speed up your workflow
No need to access your interface to make changes. You can remotely control, save, and recall all of your preamp settings—including phantom power, gain, and impedance switching—directly in Pro Tools across all Pro Tools | Carbon-connected interfaces. And with instant session recall, courtesy of the virtual assistant, you can quickly switch between sessions without any manual setup and reconfiguration delay.
Extend your workflow capabilities
With up to 24 mic/line inputs available in a Carbon Expanded system, you can capture live performances easily in pristine sound quality, making it an ideal companion for your next gig. You can also use Pro Tools | Carbon Pre as a standalone 8-channel preamp, enabling you to use it to expand other systems. And because it’s EUCON-enabled, it integrates with Avid control surfaces for seamless recording and mix control.
Expand an existing Pro Tools | HD system
Got an existing Pro Tools system that needs more mic pres? Use Pro Tools | Carbon Pre as an 8-channel preamp expansion unit to scale up your I/O, with the flexibility of remotely controlling and recalling all preamps right from Pro Tools. Or replace an aging Pro Tools | PRE and enjoy better performance and pristine sound quality. Integrate up to nine Carbon Pres in an HD system through your interface’s ADAT inputs—get all the configuration details here.
A/D conversion
Mic preamps
Array
(
[0] => Dynamic Range: 126 dB (A-weighted)
[1] => THD+N: -105 dB (0.00056%)
[2] => Frequency Response: 20 Hz–20 kHz, ±0.1 dB
[3] => EIN: -129 dB (A-weighted)
)
Line inputs
Array
(
[0] => Dynamic Range: 125 dB (A-weighted)
[1] => THD+N: -106 dB (0.0005%)
[2] => Frequency Response: 20 Hz–20 kHz, ±0.1 dB
)
Line inputs (True Bypass)
Array
(
[0] => Dynamic Range: 126 dB (A-weighted)
[1] => THD+N: -113 dB (0.00022%)
[2] => Frequency Response: 20 Hz–20 kHz, ±0.1 dB
)
Instrument inputs
Array
(
[0] => Dynamic Range: 125 dB (A-weighted)
[1] => THD+N: -103 dB (0.0007%)
[2] => Frequency Response: 20 Hz–20 kHz, ±0.1 dB
)
D/A conversion
Line outputs
Array
(
[0] => Dynamic Range: 120 dB (A-weighted)
[1] => THD+N: -110 dB (0.0003%)
[2] => Frequency Response: 20 Hz–20 kHz, ±0.1 dB
)
What’s included
Array
(
[0] => Pro Tools | Carbon Pre audio interface
[1] => Power cable
[2] => Ethernet cable
[3] => Rackmount screws and desktop feet
[4] => Registration card
)
requirements:
mac:
additional_requirements: Pro Tools | Carbon or ADAT interface for system expansion; can also be used as a standalone mic preamp
internet required: no
trial: no
notes:
feature: 24 x 24 Simultaneous I/O
Up to 32-bit, 192 kHz Audio resolution
8 Mic preamps
+48V
1U rack Form factor
2 AVB Ethernet ports for Pro Tools | Carbon I/O expansion
Pro Tools | Carbon supports up to two Pro Tools | Carbon Pre interfaces for up to 24 mic/line inputs and 24 line outputs

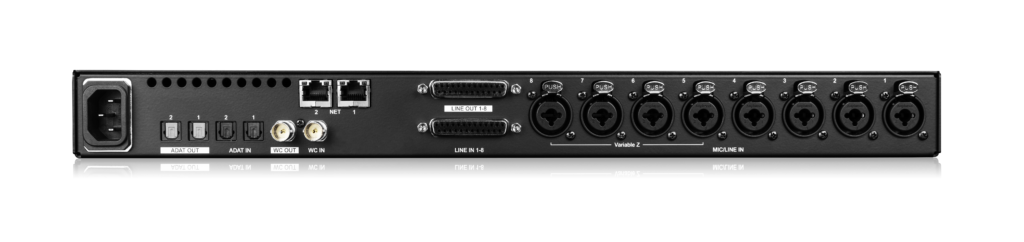

8 balanced XLR/TRS mic/line inputs with Variable Z (impedance) on inputs 5–8, remote controllable from Pro Tools
2 unbalanced Variable Z 1/4-inch TS instrument inputs
8 balanced line inputs (DB25)
8 balanced line outputs (DB25)
Digital inputs ADAT: 16 channels @ 44.1–48 kHz, 8 channels @ 88.2–96 kHz, 4 channels @ 176.4–192 kHz
Digital outputs ADAT: 16 channels @ 44.1–48 kHz, 8 channels @ 88.2–96 kHz, 4 channels @ 176.4–192 kHz
Word Clock I/O
8 HDX DSP processors (2.8 GHz aggregated processing)
platforms: mac
