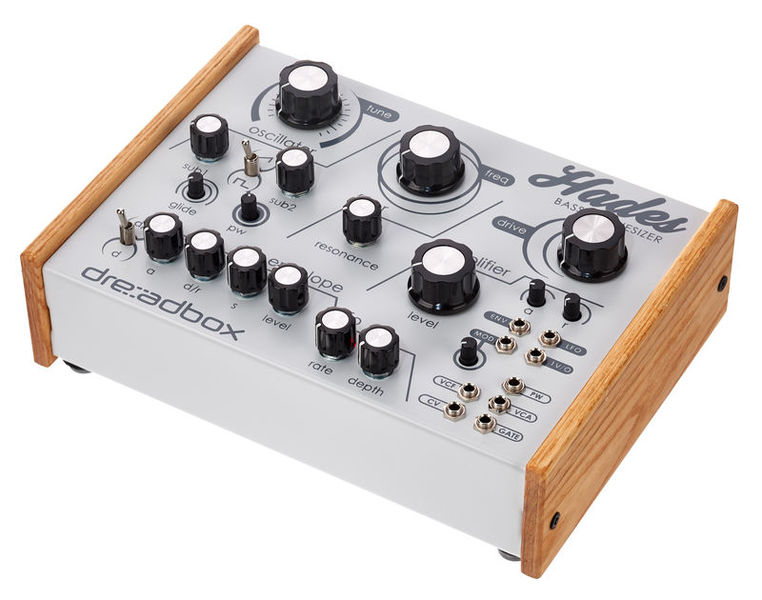

Dreadbox Hades Analog Bass Synthesizer

2,508.00 Kn

Dreadbox Hades Analog Bass Synthesizer

Nema na zalihi

Kategorija: Oznaka:


Dreadbox Hades Analog Bass Synthesizer

Full Analog Circuit only with Through Hole Components
1x VCO with 2 suboctaves (3 voices in total)
Pulse width and Glide controls
3-pole 18dB/oct Resonating Low Pass Filter
OTA Distortion Circuit for extreme sounds
OTA based VCA
2 envelope Generators
– Attack, Decay/Release, Sustain (extra snappy and patchable)
– Attack, Release (VCA hardwired)
Triangle Wave LFO
8 point patch matrix eurorack compatible
5 MIDI Octaves from C0 up to C5 or unlimited via CV/Gate

works only with 12V AC 500mA power supply 2,5mm center pin

MIDI interface: Midi in DIN socket, Pitch note/gate on-off, retrigger function, Mod wheel (hardwired on VCF), Pitch wheel, MIDI Channel select 1-7 or Omni (DIP switch)
MONO AUDIO OUT (1/4″ TS-Unbalanced), sends up to 10Vpp o
Patches: 3.5mm mono
Gate in: activation at 0.9V in a low gain up to 5V for max gain
Gate out: 0-5V
1V/oct : sends the MIDI to CV out (not the Gate)
CV IN: works at 1V/oct and can accept from +/-12V
OSC OUT: sends 10Vpp Sawtooth or Pulse Wave
Envelope out: 0-6.6V depending on the depth setting
LFO out: +/-5V
Weight: 0,9 kgr
209 x 160 x 40 mm
