Opis
24 bitna 96 khz USB2 zvucna kartica sa :
2 mikrofonska ulaza ( 48 v fantomskim napajanjem )
2 line ulaza (1/4″ TRS)
MIDI ulazom izlazom
Izlazom za sluske
i pripadajucim softverom
PREMIUM 6-CHANNEL AUDIO INTERFACE
- 4 analog ins/outs, digital in/out, MIDI in/out
- USB powered, 24-bit/96 kHz recording
- Includes instruments, sequencer and DJ software
-
INTERFACE
- 4 analog ins/outs, digital in/out, MIDI in/out
- USB powered, 24-bit/96 kHz recording
- Includes instruments, sequencer and DJ software
-
A SOUND DECISION
Record and play back music with four analog ins/outs, digital in/out, MIDI, and low-latency performance – all in a sleek, rugged metal casing. Two mic inputs armed with high-end pre-amps and Cirrus Logic converters deliver pristine sound.
CONNECTIVITY
- 4 analog inputs: 2 balanced mic/line/instrument (XLR); plus 2 balanced line (1/4″ TRS)
- 4 balanced analog outputs (1/4″ TRS)
- Digital stereo input and output (S/PDIF / RCA) for lossless signal transmission
- MIDI in/out for master keyboard, MASCHINE or any third-party MIDI controller
- Headphone output with independent level control and source switch
- Completely USB powered, with an extra sturdy custom USB socket
-
RECORD AND MONITOR
- Low-latency performance for using virtual instruments and effects
- High-quality pre-amps with individual gain controls
- Direct monitoring for latency-free recording (inputs 1 / 2)
- Mono input switch for recording vocals, guitar or other mono sources
- 48V phantom power for condenser mics and active DI boxes
- Big, analog volume knob delivers refined level control
-

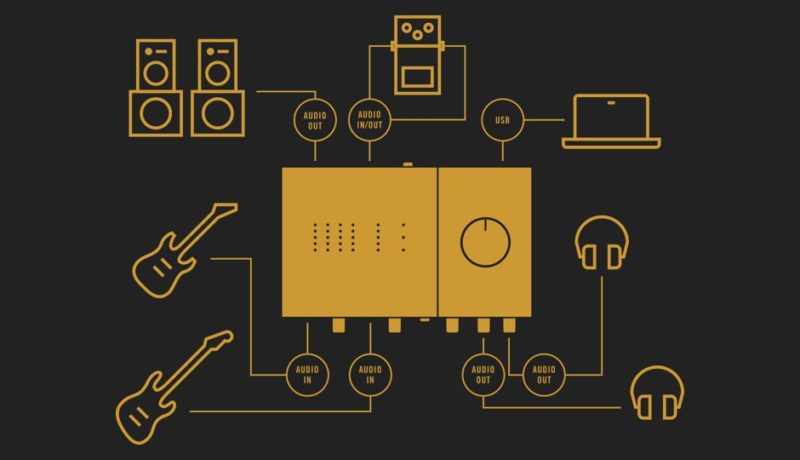

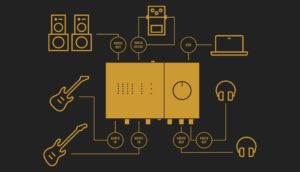

SETUP EXAMPLES
MASCHINE and your synth in perfect sync – KOMPLETE AUDIO 6 makes it possible.
KOMPLETE AUDIO 6 handles a full home studio setup and still has inputs and outputs to spare.
KOMPLETE AUDIO 6 delivers maximum connectivity and sound quality for professional studio recordings.
KOMPLETE AUDIO 6 makes it easy to integrate analog effects into your setup.
MASCHINE and your synth in perfect sync – KOMPLETE AUDIO 6 makes it possible.
KOMPLETE AUDIO 6 handles a full home studio setup and still has inputs and outputs to spare.
-
INFINITELY EXPANDABLE
KOMPLETE AUDIO 6 comes with KOMPLETE ELEMENTS – a full production package of sounds and effects. TRAKTOR LE introduces you to the world of digital DJing. CUBASE LE gives you plenty of scope for recording and arranging songs. To expand your sonic scope even further, KOMPLETE AUDIO 6 includes an e-voucher* worth 25,00 € valid for the entire range of KOMPLETE Instruments and Effects at the NI Online Shop.

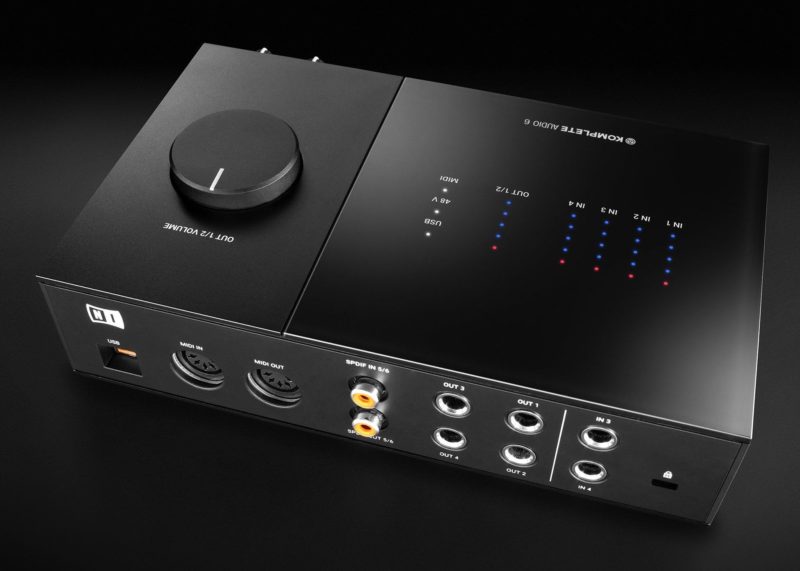

KOMPLETE AUDIO 6 is a premium-quality 6-channel audio interface. It provides everything you need to record, play and perform music, with four analog ins/outs, digital in/out, MIDI and low-latency performance — all in a sleek, rugged metal casing. The two mic inputs are armed with high-end pre-amps while Cirrus Logic converters deliver pristine, transparent sound. Upgrade your setup with KOMPLETE AUDIO 6 — because KOMPLETE sounds better.
The KOMPLETE AUDIO 6 package also includes KOMPLETE ELEMENTS, with over 1000 sounds and effects, plus software for recording, sequencing and DJing.
KOMPLETE AUDIO 6 lets you experience every facet of your sound, whether you’re playing virtual instruments or recording audio. After all, if you’re using MASCHINE or KOMPLETE Instruments and Effects, you’re armed with an array of sounds in the highest-possible audio fidelity. KOMPLETE AUDIO 6 gives you the hardware to match.
Pristine sound doesn’t happen by accident — it’s the result of knowledge, experience and close attention to detail. KOMPLETE AUDIO 6 has been designed in-house by NATIVE INSTRUMENTS. From the custom, streamlined circuit design, through the hand-picked components to the analog volume knob on top of the unit — every part of the interface is designed to preserve signal clarity.
KOMPLETE AUDIO 6 is designed to be flexible, with plenty of options for connecting mics, guitars, MIDI instruments or outboard gear:
4 analog inputs: 2 balanced mic/line/instrument (XLR); plus 2 balanced line (1/4″ TRS) 4 balanced analog outputs (1/4″ TRS) Digital stereo input and output (S/PDIF / RCA) for lossless signal transmission MIDI in/out for master keyboard, MASCHINE or any third-party MIDI controller Headphone output with independent level control and source switch Completely USB powered, with an extra sturdy custom USB socket
SYSTEM REQUIREMENTS
Mac OS X 10.10, 10.11 or 10.12 (latest update), Intel Core 2 Duo
Windows 7, Windows 8, or Windows 10 (latest Service Pack, 32/64-bit), Intel Core 2 Duo or AMD AthlonTM 64 X2
To install the additional software (optional), your computer needs an internet connection.
SUPPORTED DRIVERS
ASIO
Core Audio
DirectSound
WASAPI
DIMENSIONS
2″ (52 mm) x 6.3″ (159 mm) x 4.8″ (122 mm), 1.9lb (850 grams)
