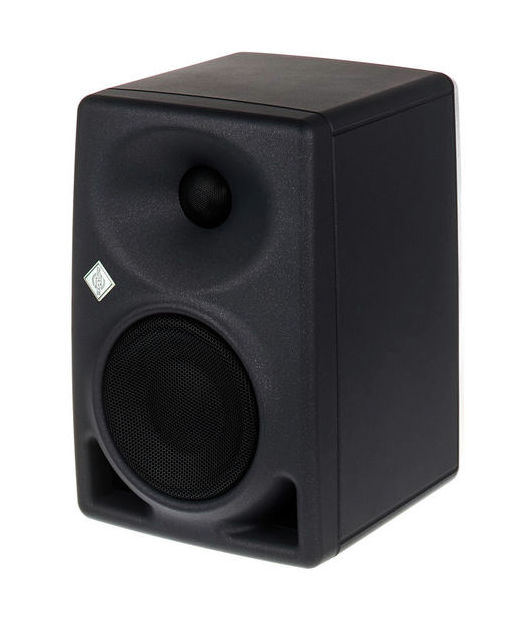

Neumann KH 80 DSP komad

4,180.00 Kn

Neumann KH 80 DSP komad

Kategorija: Oznaka:

Opis

Active DSP Studio Monitor



General Description

The KH 80 DSP two-way active bi-amplified monitor features a DSP engine with network control, a Mathematically Modeled Dispersion™ Waveguide (MMD™), an analogue input and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations. The KH 80 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.

The KH 80 DSP is designed for use as a near-field monitor, as a front loudspeaker in small multi-channel systems, or as a rear loudspeaker in a compact multi-channel systems. It can be used in project and music studios, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering. It is also well suited for use in domestic environments.



Studio Monitor with DSP

  • 24-Bit 48 kHz signal processing
  • Equipped with: 4" woofer 1" tweeter
  • Frequency response (+/- 3 dB): 57  Hz – 21 kHz
  • Maximum output level: 108.8 dB SPL
  • Power: 90 W woofer and 50 W tweeter
  • Control panel for standby and acoustical control
  • Electronic peak /thermo limiter protection circuit separately for woofer and tweeter
  • Input / output level control
  • Linear phase DSP crossover 8th order
  • External 4-position acoustical controls for low-mid or internal automatic or manual room correction (Shelf Precision Alignment) with max. 8 IIR filters plus low / high shelf global filter balance
  • 70-ms delay function for time and lipsync settings
  • Self-generated noise <20 dB (A) at 10 cm
  • Input: balanced XLR, magnetically shielded
  • Network connection
  • 2x M6 threaded receivers for stands/mounts
  • Dimensions (H x W  x D): 233 x 154 x 194 mm
  • Weight: 3.5 kg
Features



Product Feature Benefit to the Customer

  New in-house simulated drivers with metal grilles
Latest modeling techniques used to minimize non-linear (harmonic and intermodulation) distortion  Driver cones protected from accidental physical damage by robust metal grilles

  Powerful alloy fabric tweeter dome
Low-distortion high-frequency reproduction

  Elliptical Mathematically Modeled Dispersion™ (MMD™) waveguide, with wide horizontal and narrow vertical dispersion
Smoother off-axis response, More forgiving of diverse acoustical environments Freedom of movement across the mixing console Reduces reflections off the mixing console

  Long throw composite sandwich cone bass driver with Extremely Linear Force Factor™ (ELFF™)
Damping of break-up modes and low distortion at high sound levels Linear pistonic motor gives a very low harmonic distortion even at high excursions

  Two-color + dimmable Neumann logo
Displays operation status and activation of the extensive protection system
Dimmable for low lighting level conditions or behind the screen applications

  Compact polycarbonate composite cabinet
No standing wave resonances,
Fastest bass transient response,
Reduced intermodulation distortion in midrange

  Large front panel ports
Reduced bass compression and easier to mount in tight spaces such as OB vans and small studios

  One-piece front panel with no discontinuities
Reduced diffraction and smoother frequency response

  Powerful highly efficient amplifiers with large headroom
Improved transient response
Low heat dissipation

  Independent thermo limiters for woofer and tweeter to protect the voice coils and power amplifiers. Woofer soft clip and excursion limiters
Fast acting, high reliability and allows extraction of the maximum performance from the system

  Production consistency due to individual alignment in final test
Any one KH 80 DSP unit is “pair-matched” to any other KH 80 DSP unit

  4-position low-mid acoustical control
Fast acoustical set up in mobile applications

  8 x Precision Alignment acoustical controls accessible via control network
Accurate and flexible alignment of the loudspeaker in the room and within systems

  Lipsync delay (0 … 70 ms)
To align audio and video signals up to 1.75 frames
at 50 Hz or 2.1 frames at 60 Hz

  Time-of-flight delay (0 … 70 ms)
To compensate for listening distance differences up to 24 m (79 ft)

  Linear phase crossover, with bypass
Flat phase response and can by bypassed to give a similar phase response to an analog loudspeaker

  Wide range input gain and output level controls
Easier interfacing with signal sources

  Control network used standard Ethernet components
No additional special equipment needed.Brings setup, alignment and operation functions via the Neuman.Control software

  Completely symmetrical internal signal chain
Minimizes noises caused by external electromagnetic interference

  Double insulated electrical design
Ground loops are impossible

  Universal switched-mode power supply (100 … 240 V)
One version works in any country and robust to poor quality mains supply

  Extensive mounting hardware options
More flexibility in mounting cabinets in more diverse locations and backwards compatibility with previous models

Brand

Neumann
