The Sonoris Parallel Equalizer is a minimum phase parametric equalizer in VST, VST3, AU, AAX and RTAS format for Windows and Mac. The plugin is suitable for mixing and especially mastering. It has fixed filter types on each band and band 2 to 6 are connected in parallel. The filters are build in a feedback/feedforward manner to provide cutting and boosting, like in analog graphic equalizers. Band 3 to 5 are constant-Q bells and 2 and 6 are shelves. Band 1 and 7 are low/high cuts and connected in series with the rest.
Parallel filter topology
The main feature is that this eq is a lot more subtle and needs more work to set up right because there is some interaction between the bands. In normal series connected eq’s the gains of two bands just add up but in a parallel eq it doesn’t.
The filters are parallel to each other as well as the unprocessed signal and this makes that if you have for example a low shelve boost and switch on a low freq bell boost too, it just doesn’t do much more. You can’t easily overdo things, but have to work harder to get it right. Also, the signal path is cleaner because the filters al work on the same input. The filters have correct gain up to Nyquist.
Processing modes
Besides working in stereo, the Parallel Equalizer can also process audio in M(id), S(ide), L or R mode.
Display

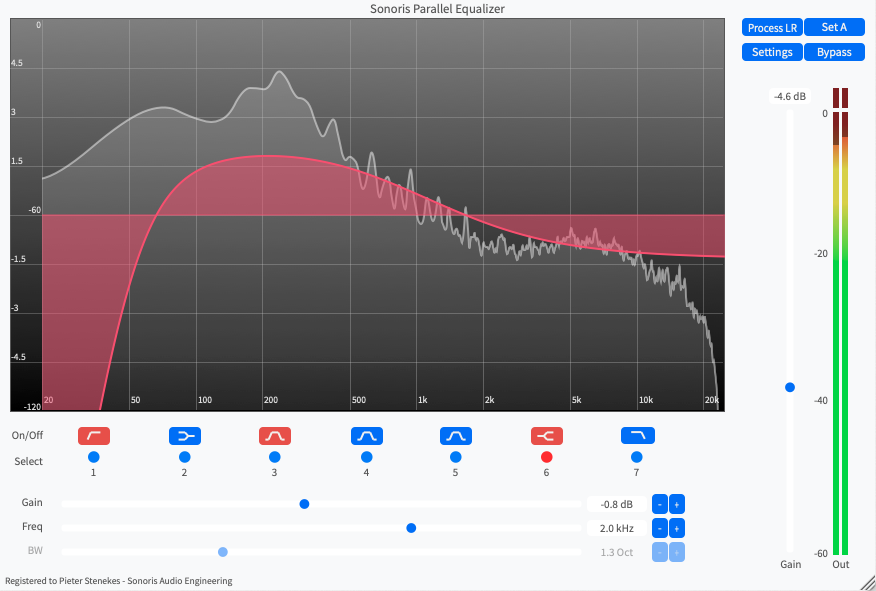

The plugin has a large graphical display that shows exactly what you get. The size of the plugin can be changed to your liking by dragging the lower right-hand corner.
requirements:
mac:
cpu: Intel Core i3 (or Apple Silicon M1 with Rosetta 2) or better
ram: 4
disk: 1
version: macOS 10.13 (High Sierra) or higher
internet required: no
support:
64_bit
plugins:
VST-2
VST-3
AU
AAX
windows:
cpu: Intel Core i3 (or equivalent) or better
ram: 4
disk: 1
version: Windows 10 or higher (64-bit only)
internet required: no
support:
64_bit
plugins:
VST-2
VST-3
AAX
trial: no
notes:
feature: 7 band parametric minimum phase equalizer with parallel connected bands
Feedforward and feedback circuit topology
Lowpass and highpass filters up to 24 dB/octave
Constant Q bells, shelving, low and high cut filters
Stereo, L, R or MS processing
No pre-warping effects, that is, correct response up to Nyquist
Soft Engage technology to prevent switching noise
Mousewheel support
A/B comparison
Large graphical display with dragable handles for maximum control
Spectrum analyser
Three zoom levels
Scalable user interface
High resolution level meter
Full automation possible
Settings can be saved
64 bit internal resolution
Windows 32 and 64 bit VST, VST3 and AAX versions
Mac OS Universal Binary 32/64 bit VST, VST3, AU and AAX versions
Mac OS Universal Binary and Windows RTAS versions
Easy Online License Activation
USB drive based license activation for offline computers
platforms: mac
windows
