Built to capture brilliance. And ready for yours.
With superior sound quality and intelligent software integration, Pro Tools | Carbon removes barriers to creativity, so you can bring out the best in your performance and capture it beautifully. Whether using a single interface or a Carbon Expanded system with Pro Tools | Carbon Pre, you can bring the power and sound of our flagship Pro Tools | HDX system anywhere you want to record.
Power and simplicity that drive your creative spark
With HDX DSP acceleration under the hood and deep Pro Tools integration, Carbon enables you to record, edit, and mix in a single application without bouncing between software. Create in the moment, free from technical hassles. And focus on the music you’re making—not what you’re making it with.
No latency. Period.

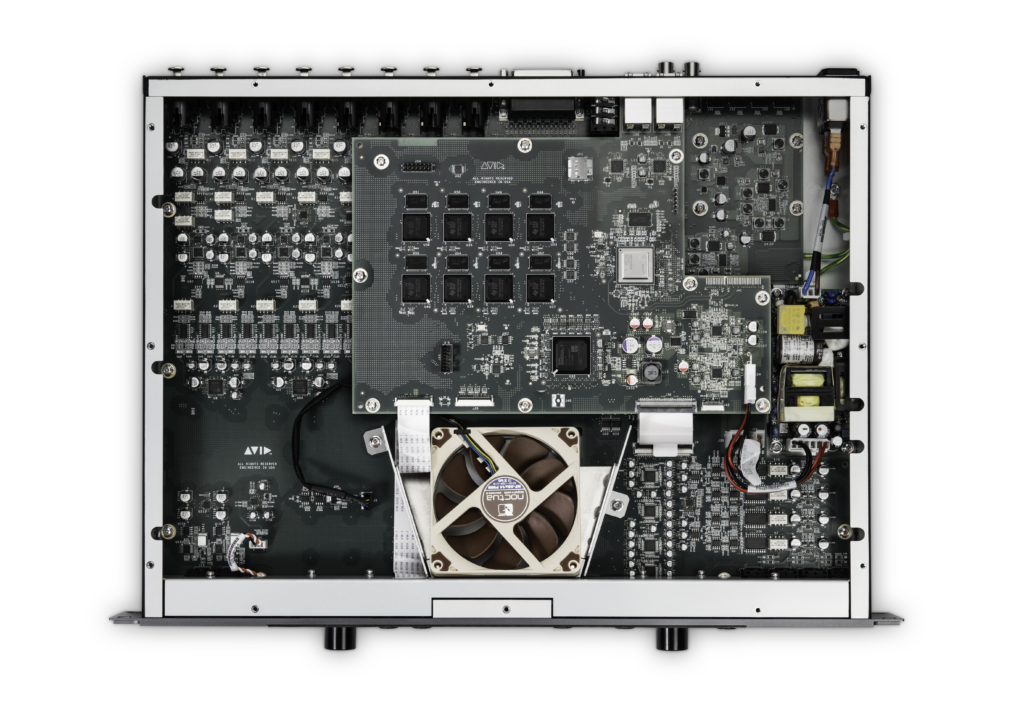

Carbon is cut from the same cloth as our flagship Pro Tools systems used in the world’s most acclaimed studios. Its custom-designed FPGA and eight HDX DSPs achieve remarkable sub-1 ms recording latency and free up your computer to run big, plugin-heavy sessions smoothly.
Fast, intuitive, and fully integrated
Move effortlessly between tracking and mixing—without messing with buffer settings. The magic is in the Hybrid Engine. Toggle any track into DSP mode, and the Hybrid Engine seamlessly moves your entire live signal path to use real-time AAX DSP plugins for recording. Toggle a track back, and it automatically switches to use the AAX Native versions of your plugins, giving you the freedom to adjust plugins as the track evolves.
Get the Ultimate toolset
Pro Tools | Carbon comes with a Pro Tools Ultimate Perpetual license, providing the complete advanced toolset, plus a massive collection of plugins, loops, and sounds. And with Carbon turbocharging the experience, you can act on inspiration the instant it strikes.
Plug into an inspired sonic palette
Shape your sound with a full range of AAX plugins—from warm, dimensional analog emulations, to cutting edge processors that define modern music making. In addition to the 120+ plugins that come with Pro Tools Ultimate Perpetual, Carbon includes a premium collection to get you started from the biggest brands in the business.
Super sonics
Superior audio conversion. Double resolution clocking. And our most transparent preamp design ever. All details have been meticulously considered, so that Carbon captures every nuance of your performance with the greatest depth, dimension, and clarity. All you have to do is push record.
Record with more depth and precision
Carbon captures 32-bit audio right at the converters and maintains a full 32-bit path from input to output for stunning sound quality and dynamic range. And with Variable Z built in, you can optimize or alter the tone of any microphone or instrument by simply adjusting input impedance.
Get flawless sound
Precision clocking is crucial for distortionless, artifact-free audio. That’s why we designed a double resolution implementation of the JetPLL™ jitter elimination technology to ensure the best sound quality for your music. It runs twice as fast as typical JetPLL clocks—and it’s twice as accurate.
Build your studio around Carbon
Get the power of our flagship HDX system in a single audio interface with 25 x 34 simultaneous I/O, eight remotely controllable and recallable mic pres, four headphone amps, and latency-free monitoring. Add Carbon Pre to expand your system up to 24 mic/line inputs, enabling you to record an entire band live—wherever you need to.
The future is Ethernet
Carbon connects to your computer over Ethernet using a proprietary version of AVB to stream audio at 32-bit float precision—a first in the industry. This enables a consistently high headroom and the highest possible sound quality from input to output. And it primes Carbon for the future.
A/D conversion
Mic preamps
Array
Line inputs
Array
Line inputs (True Bypass)
Array
Instrument inputs
Array
D/A conversion
Line outputs
Array
Monitor outputs
Array
Headphone outputs
Array
What’s included
Array
requirements:
mac:
additional_requirements: Avid-qualified Ethernet or Thunderbolt-equipped macOS-based computer
internet required: no
trial: no
notes:
feature: 25 x 34 Simultaneous I/O
Up to 32-bit, 192 kHz Audio resolution
8 Mic preamps
+48V
Integrated monitoring and talkback
1U rack Form factor
2 AVB Ethernet ports for host connection and expansion
Pro Tools | Carbon supports up to two Pro Tools | Carbon Pre interfaces for up to 24 mic/line inputs and 24 line outputs
8 balanced XLR/TRS mic/line inputs with Variable Z (impedance) on inputs 5–8, remote controllable from Pro Tools
2 unbalanced Variable Z 1/4-inch TS instrument inputs
8 balanced line inputs (DB25)
8 balanced line outputs (DB25)
2 balanced 1/4-inch TRS monitor outputs
4 stereo 1/4-inch TRS headphone outputs
Digital inputs – ADAT: 16 channels @ 44.1–48 kHz, 8 channels @ 88.2–96 kHz, 4 channels @ 176.4–192 kHz
Digital outputs – ADAT: 16 channels @ 44.1–48 kHz, 8 channels @ 88.2–96 kHz, 4 channels @ 176.4–192 kHz
Word Clock I/O
Footswitch input
8 HDX DSP processors (2.8 GHz aggregated processing)
platforms: mac
