MidiPlus Studio 2 USB2 audio interfejs
Studio 2 USB audio interfajs 192khz 24 bita .

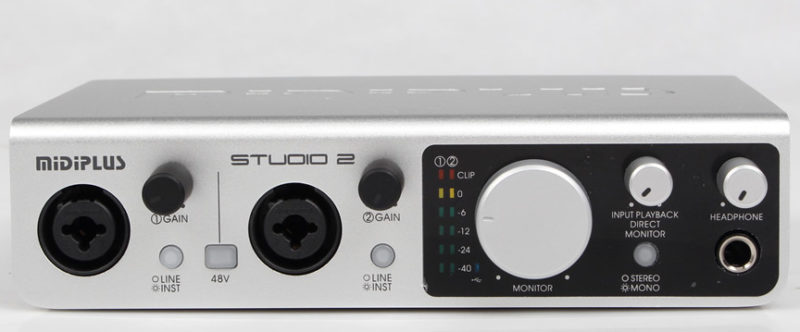

Studio 2 na prednjoj ploci ima 2 kombinirana mikrofonska ulaza XLR sa 48 volti fantomskim napon za kondezatorske mikrofone i line ulazima koji se moze ukljucit i iskljucit po potrebi. (gitarski ulaz sa line instrument prekidacem)
Za kontrolu glasnoca tu je poprilicno veliki gumb i 2 led VU metra koji pokazuju jacinu signala.
Prikljucak za slusalice ima odvojeni knob za glasnocu tako da se moze nezavisno od glavnog signala kontrolirati glasnoca u slusalicama.

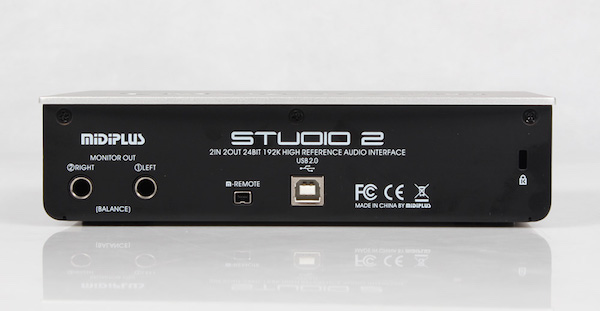

Na straznjoj ploci je USB2 konektor za spajanje sa Mac ili Windows masinom
Izlazi su balansirani TRS
- Portable USB audio interface with 24bit/ 192kHz high resolution AD/DA conversion.
- Two XLR/ TRS combo inputs with high-quality microphone preamplifier.
- Two(left & right) 1/4″(6.35mm) TRS balanced output interfaces.
- One 1/4″ (6.35mm) stereo headphone interface with separate volume control knob.
- One M-Remote interface for connecting extensible device.
- With instrument/ line switches, stereo/ mono switch.
- Supports direct monitor control and main output level control.
- High speed USB 2.0 bus powered, with 48V phantom power switch.
- Compatible with Mac and Windows systems.
Prije prikljucenja na windows PC potrebno je skinut i instalirat drajvere !
http://www.midiplus.com/download/drive/83.html?lang=en
za MAC ne trebaju drajveri !
MIDIPLUS STUDIO 2 USB Audio Interface Sound Card
2 Inputs 2 Outputs 24bit/ 192kHz High Precision Sampling 48V Phantom Power with USB Cable 6.35mm to 3.5mm Adapter
- Portable USB audio interface with 24bit/ 192kHz high resolution AD/DA conversion.
- Two XLR/TRS combo inputs with high-quality microphone preamplifier.-high impedance mode support guitar
- Two(left & right) 1/4″(6.35mm) TRS balanced output interfaces.
- One 1/4″ (6.35mm) stereo headphone interface with separate volume control knob.
- High speed USB 2.0 bus powered, with 48V phantom power switch.
- ●Two colorful indicator LED reflect gain or is cut off for the input signal.
- ● With two groups jumpy indicator LED reflect the range of the input signal in real time.
- ●Volume for monitor headphone and main output can be adjusted independently
- ●Hardware monitor input and output signal directly at the same time and no delay
Specifications:
Frequency Response: 20Hz-20kHz (±0.1dB)
Sampling Rate: 24bit/ 192kHz
Phantom Power: +48V
USB Cable Length: About 1.5M
Item Size: 18.6 * 11.5 * 4.7cm / 7.3 * 4.5 * 1.9in
Item Weight: 685g / 1.5lb
Package Size: 26.5 * 16 * 8cm / 10.4 * 6.3 * 3.1in
Package Weight: 940g / 2.1lb
Note:
1. Support Windows 7 or above version. Please go to the website: <www.midiplus.com > to download STUDIO driver before using the device with Windows system.
2. For Mac system, you can connect the device to the computer and start to use it directly.
Package List:
1 * Audio Interface
1 * USB Cable
1 * Adapter (6.35mm to 3.5mm)
1 * User Manual (English & Chinese)
