The inspirational grid-based groove box.
Circuit is designed to inspire. Two Novation polysynths and a four-part drum machine, combined with an intuitive grid-based sequencer in a standalone box that will have you making electronic music in minutes. Hit some pads, tweak the knobs and your track will start to emerge, all locked in time and key. Play around with effects, patterns and sounds in real time, to produce your track, brimming with fat grooves and beats.
All You Need To Make Music – Anywhere
Compact and battery powered with a powerful built-in speaker, Circuit can be used to make music entirely on its own. In the studio it will work alongside your standalone synth gear and run in sync with your music software too. Circuit is all you need to inspire, create and play new tunes.
MusicTech Gear of the Year 2015 | Best Innovation – Novation Circuit
“…a truly self-contained musical marvel” // “It is without a doubt about the most musical fun you can have with one box and no computer, and I haven’t made music so quickly in 20-odd years of reviewing gear.”
“Circuit really feels like it’s about intuition, experimentation, and happy accidents”
Create Digital Music
“It’s one of the most accessible pieces of gear I’ve ever used”
“Circuit has a broad, quality sound palette, inspiring workflow and a sequencer that bests instruments fourtimes its price”
“Designed for optimized creativity, rather than the ‘blank slate syndrome’ that sitting down in front of a DAW can bring about”
“You don’t really need to understand what each knob controls, just listen with your ears and let your fingers shape your sounds. The Circuit excels in this area, while other machines seem almost basic and quaint in comparison.”
“Novation hit it out of the park. Circuit is fun, affordable, intuitive and it keeps getting better.”
Build Ideas Quickly
Embrace a new way to make music. Circuit’s split grid shows your steps and notes at the same time, so you can sequence and play while seeing exactly what’s going on. Build up your parts quickly and easily, either by programming each step or capturing your performance in real-time.
Ideas in Seconds. Tracks in Minutes

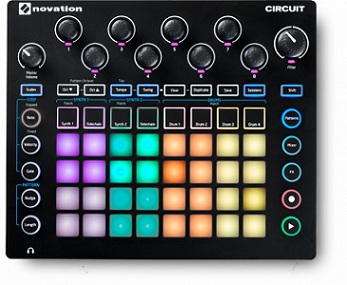

Circuit inspires, straight out the box. It combines a 2-part synthesiser and a 4-part drum machine with a 4×8 RGB velocity-sensitive grid sequencer, which will have you finding new musical directions and creating electronic grooves in no time.
Circuit Synthesiser and Drum Machine
Cutting Edge Sound
Building on our true Nova heritage, Circuit delivers cutting-edge sound with production-ready monophonic and polyphonic patches and tons of character for easily creating deep bass lines, epic leads and warm pads.
Combine Simplicity and Experimentation
Use simple streamlined modes to keep your harmonies, rhythms and melodies locked in time and key while you make riffs, hooks and chords. Or start experimenting for some serious sequencing exploration.
Compact and battery-powered, Circuit truly stands alone. You can create entire tunes from scratch without a laptop, then save them and play them back live. You don’t even need speakers, because it has one built in. Of course, Circuit will plug in to your sound system and work with your computer and other synth gear too, via its Line Outs, USB and MIDI ports.
Looking for the Perfect Beat?
Velocity sensitive RGB pads let you quickly build expressive drum beats, by step sequencing or playing the wide range of drum sounds. Define your sound with total control over pitch, decay, distortion and EQ.
Build Whole Tunes with Effects
Create an entire tune by combining up to 128 steps of synth and drum patterns, then adding space, depth and energy to your music with built-in effects. Sidechain your synths to the kick drum to get them to pump. When you’re done, save your tune to one of 32 slots.
Easily Tweak Your Sound
Sculpt your sound using eight macro knobs allowing you to subtly tweak or completely transform each patch. Then add movement and rhythm by recording or sequencing your performance.
Circuit Customisable Components
Product Hardware Specifications
- 32 RGB backlit velocity sensitive button grid
- 28 RGB backlit function buttons
- 8 Continuous pots with RGB indicator LEDs
- Dedicated filter and volume pots
- 1/4″ jack sockets for left and right outputs
- Two MIDI sockets (3.5mm jack sockets with MIDI din break-out cables)
- USB socket
- Front-mounted 3.5mm jack socket for headphones
- Integrated speaker
- Rubberised knob caps
- Rotary controls secured to the chassis with metal nuts
- Power supply connector
- Power switch
- Battery compartment for 6x AA batteries (included)
- Kensington Security Slot
- 2 Nova synths
- 4 Part drum machine
- 6 Note polyphonic per synth
- 64 Synth patches
- 64 Drum patches
- 8 Synth macro controls (Control up to 4 parameters with one knob)
- 4 Drum parameter controls (Pitch, Decay, Distortion, Filter)
- Mixer view with levels and mutes
- Master FX with individual track sends
- 16 Delays
- 8 Reverbs
- Sidechain effect (7 types and off). Triggered from Drum 1
- Hi-pass / low-pass master filter
- 32 Sessions
- 6 Tracks per session (2 Synth and 4 Drum)
- 8 Patterns per track (Synth 1, Synth 2, Drum 1&2, Drum 3&4)
- 16 Demo sessions
- Real time record (notes, with velocity and automation)
- Auto-quantise notes to steps and automation to 6 events per step
- 50 Automation parameters (up to 4800 events per pattern)
- Internal tempo range 40 – 240
- External synced tempo range 30 – 300
- Swing 20 – 80%
Real Time Performance
- Full range velocity scanning and record. Editable to 16 levels
- 16 Scale types and chromatic transposition
- Synth expand view doubles playable area
- Drum expand view allows real time drum record
- Octave (input) and pattern octave (edit)
- Pattern length and nudge
- Configurable pattern chain
- Session instant switching and queued switch
- Velocity and gate per step
- Multiple gate lengths per step (via real time record)
- Automation edit per step
- Clear step, automation parameter per pattern, pattern, session
- Duplicate step, pattern
- Ableton Live Lite 9 is included
Circuit will also work as a standard USB-MIDI controller.
- Circuit can be powered using 6x AA batteries or a power supply (both included). It can not be powered via USB
- Maximum power consumption 12V DC 600mA
- 240mm width x 200mm depth x 35mm height
