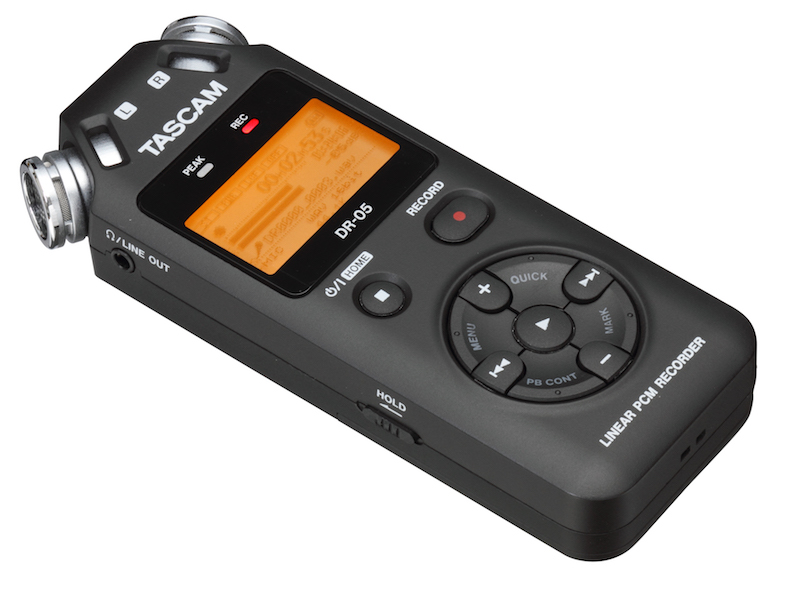

Tascam DR-05 nudi viskokvalitetne mogućosti 96 khz 24 bita snimanja glazbenicima i snimateljima . Posjeduje 2 ugrađena mikrofona što omogućava stereo snimke vrhunske kakvoće. Par mikrofonkih ulaza s XLR priključnicama i fantomskim napajanjem namijenjen je korsinicima profesionalnih kondenzatorskih mikrofona, a tu su i linijski ulazi izlazi.
|Recording media||microSD card (64MB to 2GB), microSDHC card (4GB to 32GB)|
|File format||WAV(BWF), MP3|
|Quantization bit rate||16/24bit|
|Bit-rate for recording||32/64/96/128/192/256/320kbps|
|Playback bit rate||32 to 320kbps, VBR, ID3 tag Ver. 2.4|
|Number of channels||2-channel(Stereo)|
|Playback speed control (VSA)||0.5 to 1.5 times (in 0.1 increments) *44.1/48kHz only|
|Built-in microphone||Omnidirectional, stereo|
|Connector||3.5mm (1/8″) stereo mini jack, Unbalanced, Plug-in power|
|Nominal Input Level||-20dBV|
|Maximum Input Level||-4dBV|
|Connector||3.5mm (1/8″) stereo mini jack, Unbalanced|
|Nominal Output Level||-14dBV(10kΩ load)|
|Maximum Output Level||+2dBV(10kΩ load)|
|Maximum Output||20mW + 20mW(32Ω load)|
|Built-in speakers||0.3W, Mono|
|Format||USB2.0 HIGH SPEED|
|Chromatic tuner||C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments)|
|Tripod attachment screw-hole||1/4 inch, Tripod attachment screw-hole|
|Power||2 AA batteries,
USB bus power,
AC100 to 240V (Optional AC adapter)
|Power consumption||1.7W (Max)|
|Battery operation time|
|With alkaline batteries
|With Ni-MH batteries
|Weight||116g / 0.25lb
|Standard accessories||4GB microSD card, USB connection cable, 2 AA batteries for confirming operation, Owner’s Manual, Warranty card|
Everything about the DR-05 is designed to capture the best quality recordings of your music. A new pair of built-in microphones withstands up to 125dB SPL – the volume of a jet plane from 200 feet away – yet still have the sensitivity to capture every detail of a performance. You can add your own microphone or line-level source through the 1/8” stereo input, including plug-in power for microphones that need it. Internally, the DR-05’s digital and analog circuit boards are built separately to increase noise performance, with a low-impedance design to further decrease hiss. A separate power supply is sent to the A/D and D/A converter for even better audio performance. The result is clean sound quality – over 92dB signal to noise ratio, under 0.05% total harmonic distortion and 20Hz to 40kHz response (-1/+3dB) at 96kHz/24-bit resolution.
Simple to Operate
The layout of the DR-05 has been revamped to be quick and easy to work with one thumb. Operations like recording, adjusting levels, deleting bad takes and adding markers are just a button press away. Dig deeper to find features like limiting, low cut filtering, a built-in chromatic tuner and more.
One new feature that makes the DR-05 easy to operate is the new Peak Reduction feature. This setting automatically sets your recording level by listening to the input and adjusting for the best level. Unlike Auto Gain settings, this one only goes down to prevent accidental distortion after a period of low level like a break. Peak Recording works in rehearsal mode or in record, so if the performance is louder than the soundcheck you’re still safe. Used with the built-in limiter, it’s unlikely you’ll distort your career-making live recording.
Other classic TASCAM features are included, like Variable Speed Audition to loop and slow down music without changing the pitch – perfect for transcribing or learning new music. A Level Align function can be switched on for playback, to smooth out any sudden volume jumps, and a built-in speaker is also provided. The two AA batteries are enough to power the recorder for 17 1/2 hours, even while recording at CD quality.
For musicians and recordists at any stage of their career, there’s no easier way to get great-sounding recordings than TASCAM’s DR-05.
