Bitwig Connect 4/12

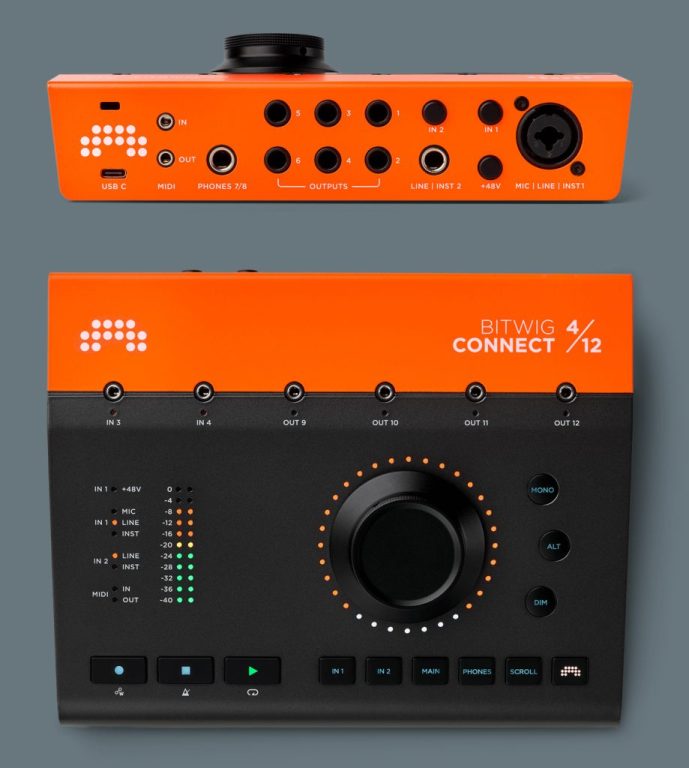

Bitwig Connect 4/12 is more than an USB C audio interface – it’s a class-compliant, 4‑in/12‑out CV and MIDI-enabled audio interface with monitor- and DAW-control functionalities and a unique Bitwig Mode. As a bridge between software and external gear, Bitwig Connect is the perfect device to mark our debut into hardware

USB Audio Interface

• With CV and Bitwig integration
• 24 Bit / 192 kHz
• Bitwig integration for transport functions, precise parameter customisation and writing automations
• Monitor controller function
• Powered via USB
• Class compliant, compatible with PC, Mac and Linux
• Dimensions (W x H x D): 205 x 52 x 163 mm
• Weight: 1.48 kg
• Includes USB-C cable, USB-A adapter, 2x 3.5 mm mini-jack cable, 2x mini-jack to MIDI cable, Bitwig Studio Essentials and Bitwig Circle membership

Connections:

• Microphone/line/instrument input with 48 V phantom power: XLR / 6.3 mm TRS combo jack
• Line/instrument input: 6.3 mm TRS jack
• Line inputs: 2 x 6.3 mm TRS jack
• CV inputs: 2 x 3.5 mm TRS mini jack
• Line outputs: 6 x 6.3 mm jack
• CV outputs: 4 x 3.5 mm TRS mini jack
• Headphone output: 6.3 mm TRS jack
• MIDI input and output: 3.5 mm TRS mini jack v
• USB-C port

Included : USB-C Cable, USB-A Adaptor, 2 x 3.5mm mini-jack cables, 2 x mini-jack to MIDI cables
