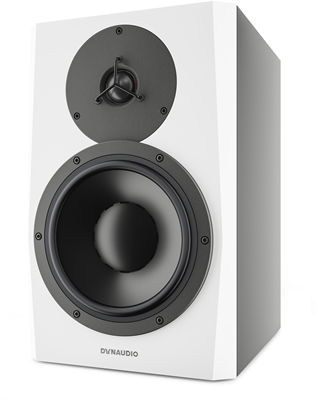

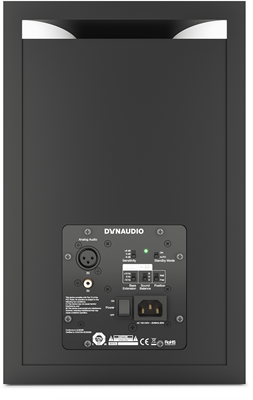

LYD 8 White – aktivni studijski monitor
Najveći dvosistemski zvučnik u LYD seriji. LYD 8 je redefinirana verzija prijašnje serije profesionalnih monitora visoke preciznosti.
Tehničke specifikacije:
*Measured by the best acousticians in the business.
| Max SPL (1m, pair): | 112dB |
|---|---|
| Principle: | Bass reflex, rear port |
| Crossover Frequencies: | 3.9kHz |
| Tweeter: | 1inch Soft dome |
| Mid: | N/A |
| Woofer: | 8inch |
| Dimensions (W x H x D): | 234 x 369 x 328mm |
| Weight: | 10.2kg |
| Sensitivity (85dB @ 1m, free field): | |
| +6dB: | 50mV |
| 0dB: | 100mV |
| -6dB: | 200mV |
| Amplifier: | |
|---|---|
| Power (Tweeter/Woofer): | HF 50W/LF 80W |
| Type: | Class D |
| Power consumption standby: | <0.5 W |
| Power consumption max.: | 100 W |
| Input voltage: | 90 – 264 V AC, 50 – 60 Hz |
| XLR balanced | |
| Inputs: | RCA unbalanced |
| Outputs: | N/A |
| Cut-off frequencies -6dB limits: | |
| Bass extension +10Hz: | 65Hz – 21kHz |
| Bass extension 0Hz: | 55Hz – 21kHz |
| Bass extension -10Hz: | 45Hz – 21kHz |
| Free field frequency response: | 55Hz – 19kHz |
Features:
-
Nearfield Monitor with 8″ Woofer
-
Bi-amped speaker design with 50W HF/80W LF and state-of-the-art Class-D amplification
-
Bass extension to extend or curtail the low end frequency response
-
Two different tunings: one for free standing and one designed for speakers within 50 cm of wall
-
Sound balance to influence the overall response of the speaker
-
Made in Denmark
