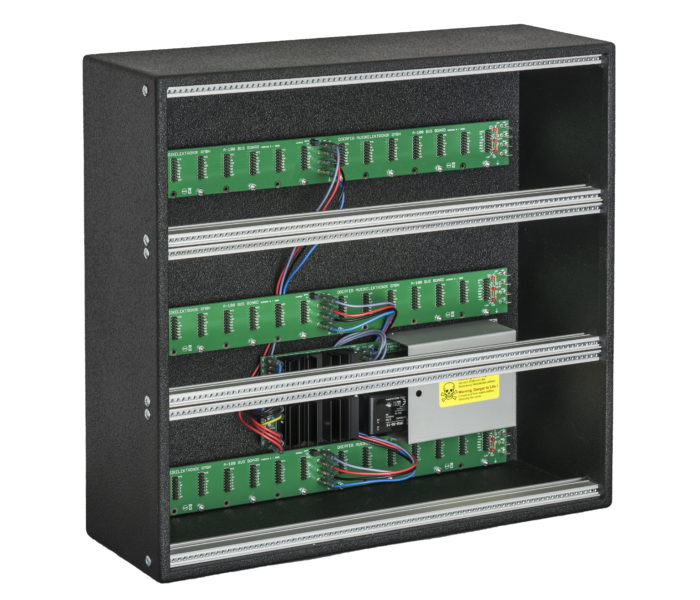

Doepfer A-100LC9v Low Cost Case VE

Empty housing for accepting Eurorack modules

kuciste za Eurorack module sa ispravljacem

• Vintage edition
• Size: 9 U (3x 3 U)
• Three rows with 84 HP each for installing modules
• Dimensions (W x H x D): approx. 445 x 275 x 160 mm
• Usable depth for A-100 modules: approx. 80 mm in the power supply area (lower right), otherwise around 100 mm (measured from the inner surface of the front panel)
• External dimensions (W x H x D): approx. 445 x 420 x 160 mm
• Internal dimensions: 3x 84 HP x 3 U
• Colour: black
• Includes PSU3 PSU (+12 V / 2000 mA, -12 V / 1200 mA, +5 V / 4000 mA, 100 – 230 V)
